Máy phay CNC

  • Đánh giá
  • Phí vận chuyển Tính phí khi thanh toán

TRAVELS              S.A.E.    METRIC

- X Axis    50 "        1270 mm

- Y Axis    20 "        508 mm

- Z Axis    25 "        635 mm

- Spindle Nose to Table (~ max)   29.2 "     742 mm

- Spindle Nose to Table (~ min)    4.2 "       107 mm

TABLE    S.A.E.    METRIC

- Length  52 "        1321 mm

- Width    18 "        457 mm

- T-Slot Width       5/8 "      16 mm

- T-Slot Center Distance   3.15 "     80.0 mm

- Number of Std T-Slots   5              5

- Max Weight on Table (evenly distributed)            3500 lb 1588 kg

SPINDLE               S.A.E.    METRIC

- Max Rating         30 hp     22.4 kW

- Max Speed         8100 rpm             8100 rpm

- Max Torque       90 ft-lb @2000 rpm          122 Nm @ 2000 rpm

- Drive System     Inline Direct-Drive           Inline Direct-Drive

- Max Torque w/opt Gearbox       250 ft-lb @ 450 rpm         339 Nm @ 450 rpm

- Taper    CT or BT 40          CT or BT 40

- Bearing Lubrication         Air/Oil injection                Air/Oil injection

- Cooling Liquid Cooled     Liquid Cooled

FEEDRATES         S.A.E.    METRIC

- Rapids on X         1000 in/min        25.4 m/min

- Rapids on Y         1000 in/min        25.4 m/min

- Rapids on Z         1000 in/min        25.4 m/min

- Max Cutting       650 in/min           16.5 m/min

AXIS MOTORS   S.A.E.    METRIC

- Max Thrust X     2550 lb 11343 N

- Max Thrust Y      2550 lb 11343 N

- Max Thrust Z      4200 lb 18683 N

TOOL CHANGER                S.A.E.    METRIC

- Type      Carousel (SMTC Optional)            Carousel (SMTC Optional)

- Capacity               20           20

- Max Tool Diameter (full)               3.5 "       89 mm

- Max Tool Weight              12 lb       5.4 kg

GENERAL             S.A.E.    METRIC

- Air Required       4 scfm, 100 psi   113 L/min, 6.9 bar

- Coolant Capacity              55 gal     208 L

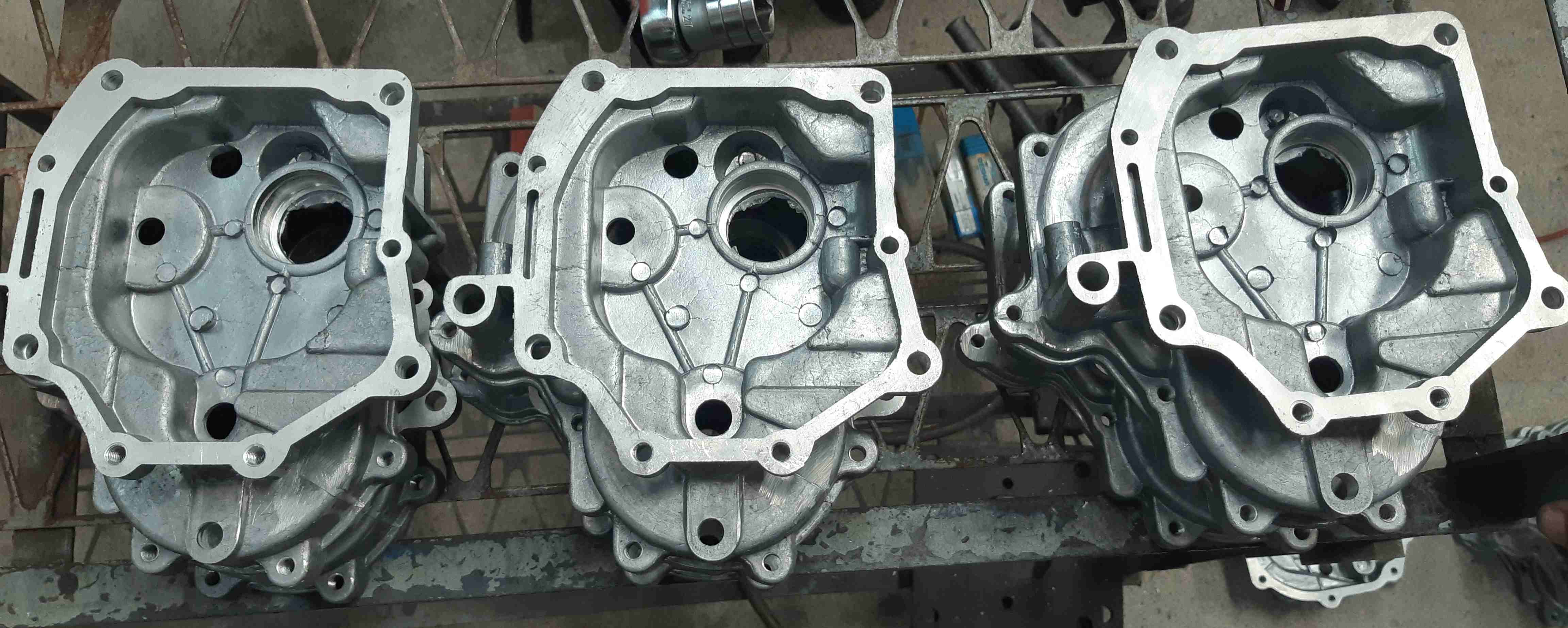

SẢN PHẨM TỪ MÁY PHAY CNC:
